OLD Rescue station, Pier
OLD Rescue station, Pier

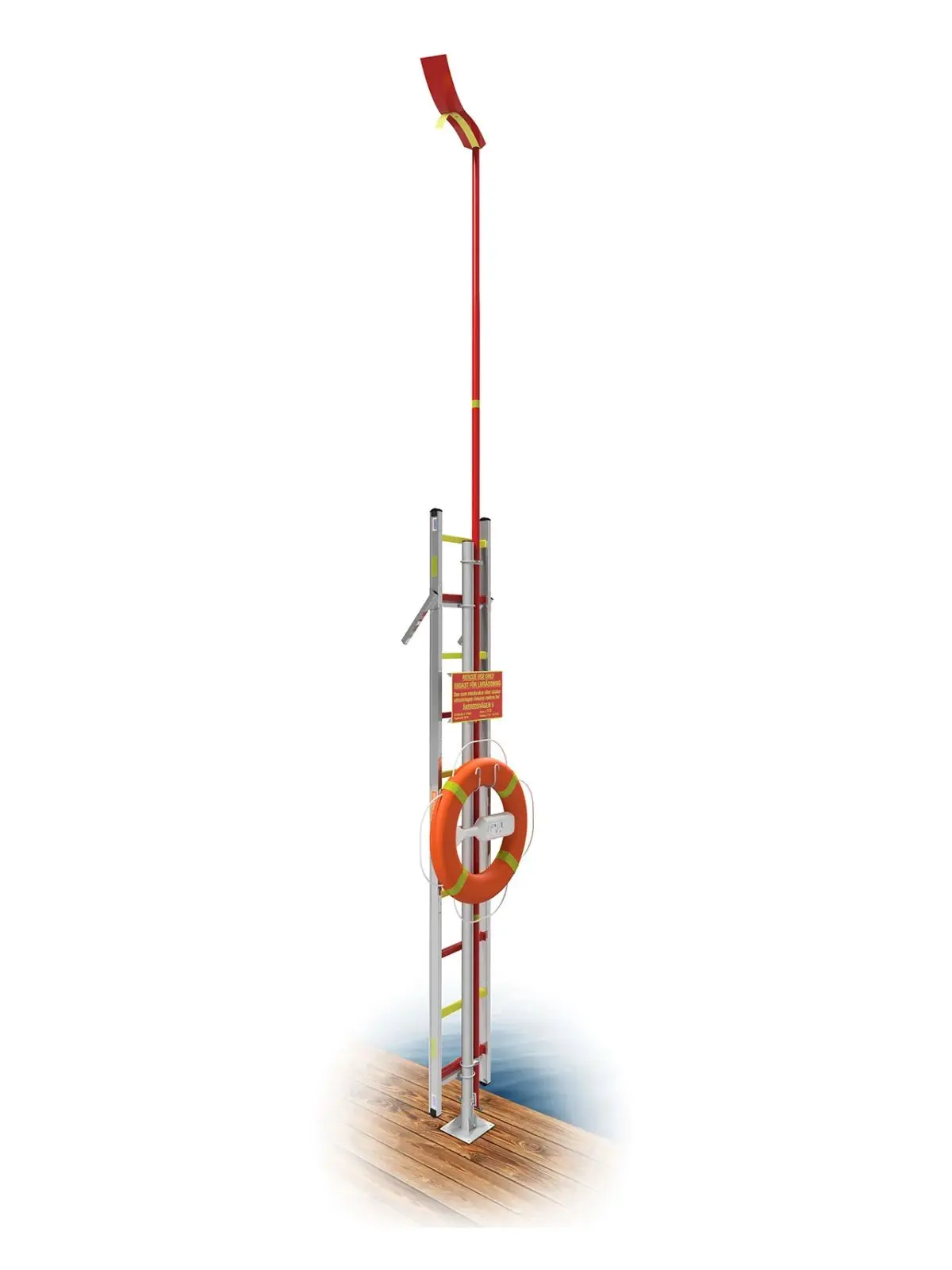

The Shore Safety Rescue Station is a complete and fully equipped lifesaving installation developed specifically for quay environments where reliable and clearly visible rescue equipment is required.
Each station includes a 3-meter post with fittings, a certified rescue ladder, a rescue hook, a lifebuoy, and a reflective location sign. The configuration ensures that all essential rescue tools are readily available in one place, enabling a fast and effective emergency response.
The rescue ladder is three meters long and equipped with hook fasteners, allowing it to reach deep into the water for safe and easy access from the quay. The station can also be equipped with a fire cabinet to provide combined fire and rescue functionality.
All Shore Safety products meet the requirements of the Swedish Civil Contingencies Agency (MSB) and comply with European and Swedish safety regulations for professional lifesaving installations.
Product description
The Rescue Station is engineered for public and industrial quays, harbors, and waterfronts, where durability, visibility, and accessibility are crucial. Constructed from marine-grade materials, it withstands the demanding conditions of coastal environments, including exposure to saltwater, wind, and temperature variations.
The certified rescue ladder (SP 149001) is approved for use in accordance with AFS 2004:3 and EN 131, ensuring it meets all European standards for safety and load-bearing performance. Its three-meter length ensures proper depth reach, allowing a person in distress to climb up from the water without assistance.
The rescue hook and lifebuoy provide versatile tools for retrieval and flotation, while the reflective location sign ensures the station is visible from a distance — both day and night.
For areas where fire hazards exist, the station can be customized with an integrated fire cabinet, creating a comprehensive rescue and fire safety system in one unified installation.
Additional information
| Length | Rescue Ladder: 4 m |
|---|---|
| Height | Post: 3 m |
| Weight | – |
| Material: | SP 149001 (AFS 2004:3, EN 131), MSB standards |
| Color | – |
| Reflectors | – |
| Special: | Included: Lifebuoy, rescue hook, certified rescue ladder, reflective location sign, post with fittings |
Placing
The station should be placed perpendicular to the waterline so that it is clearly visible even from a distance.
The ladder is mounted on one side and the lifebuoy on the other.
This ensures that the rescue equipment is easily accessible from each side.
The station is anchored to concrete and wooden quays with Shore Safety’s quay bracket or with a concrete foundation.
Assembly instructions
Product quality
Sustainable & Safe Materials
We use durable, recyclable materials.
All aluminium, stainless steel, and plastics are selected to meet both environmental and safety standards. Every product follows MSB’s (The Swedish Civil Contingencies Agency) guidelines for rescue equipment. MSB is widely recognised for maintaining very high safety and quality standard
Built for Nordic Conditions
Our equipment is designed for the harsh coastal climate.
Every component—from metal fittings to reflective materials—is tested to endure salt, wind, and ice. Shore Safety’s products perform reliably year-round, even in extreme weather.
Visible When It Matters
High visibility saves lives.
Reflective markings and signal colors guide rescuers even in low light. The yellow elements are optimized for maximum contrast against water and urban backgrounds.
High visibility saves lives.
Reflective markings and signal colors guide rescuers even in low light. The yellow elements are optimized for maximum contrast against water and urban backgrounds.
Proven Durability
Long-term performance is a part of our promise.
Our products are built to resist corrosion and UV exposure. Hot-dip galvanization, marine-grade aluminium, and weather-resistant plastics ensure many years of reliable service.
Related products
FAQ
Vanliga frågor
Below you’ll find answers to the most common questions about Shore Safety’s Lifebuoy Station — including its equipment, customization options, installation, and compliance. These FAQs are designed to help you understand how the station enhances water safety, ensures accessibility, and provides long-lasting reliability in both public and professional environments.
Have any questions?
What equipment is included in the Rescue Station – Pier?
The station includes a 3-meter post with fittings, a type-approved rescue ladder, a rescue hook, a lifebuoy, and a reflective location sign. It can also be equipped with an optional fire cabinet, providing a complete rescue and fire safety system in one installation.
What is the difference between the Pier and Quay versions?
The Rescue Station – Pier is designed for floating or lower pier installations, where the 3-meter rescue ladder provides the ideal reach. In contrast, the Quay version features a 4-meter ladder for higher fixed quay structures. Both meet the same professional safety standards.
What standards does the rescue ladder meet?
The ladder is type-approved by SP (SP 149001) and certified under AFS 2004:3 and EN 131, ensuring full compliance with Swedish and EU safety regulations for rescue equipment.
How should the station be installed?
The station should be installed perpendicular to the waterline so it is visible from both directions. The ladder must extend at least one meter below the normal low-water level, and the post should be anchored using Shore Safety’s mounting bracket or a concrete base for long-term stability.
